Description:

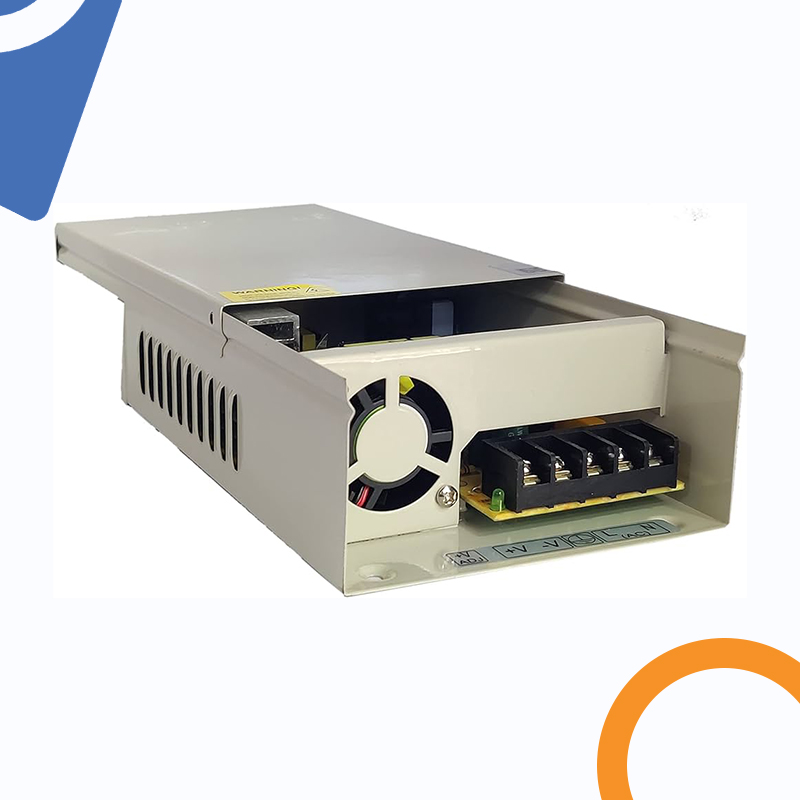

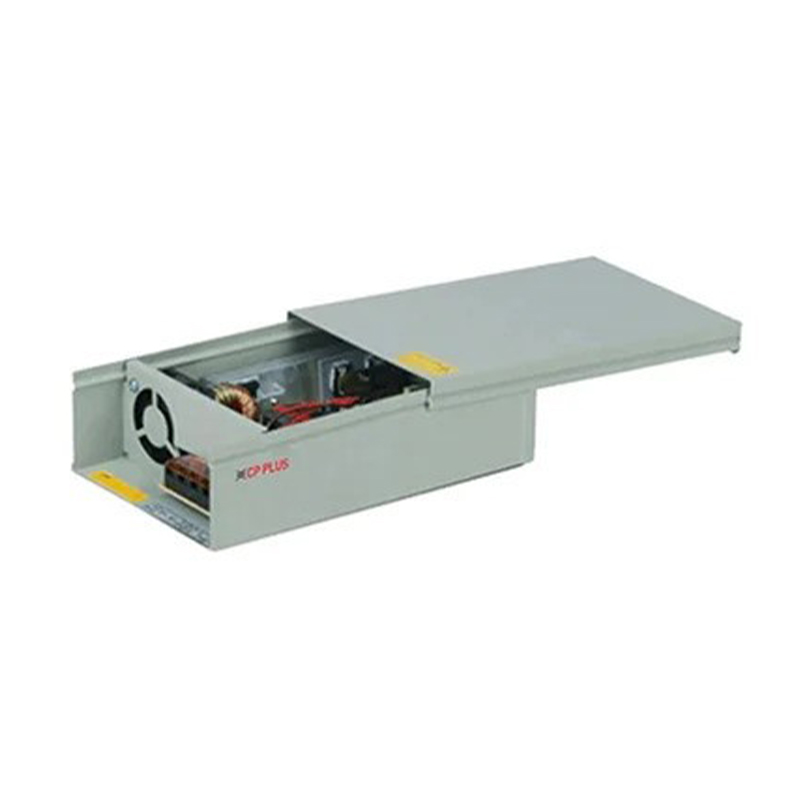

Elevate the power distribution of your surveillance setup with the CP-DPS-MD200P-12D Metal Case Power Supply from CP. Designed to meet the demands of high-power CCTV installations, this power supply offers a wide input voltage range of 190V to 250V AC, ensuring compatibility with various power sources. With a robust output of 12V and an impressive current rating of 20A, it provides substantial power to support multiple cameras and devices without compromising performance. Equipped with built-in EMI filters, voltage regulators, and comprehensive protection mechanisms against overload, overvoltage, and short circuits, this power supply ensures safe and uninterrupted operation. The durable metal housing facilitates uniform heat dissipation, ensuring reliability and longevity even in challenging environments.

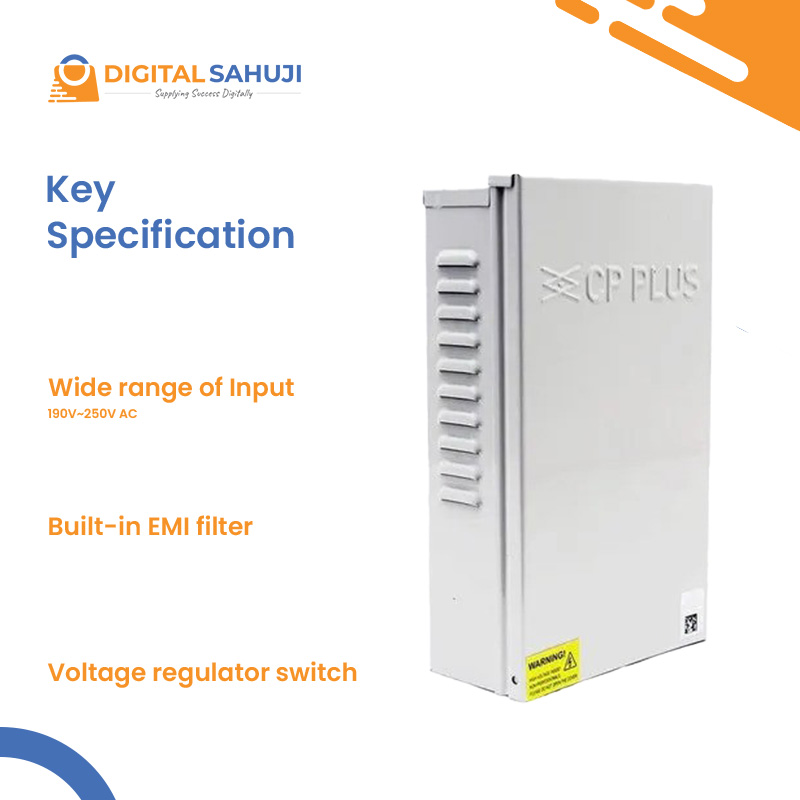

Key Features:
Wide Input Voltage Range: Compatible with input voltages ranging from 190V to 250V AC, accommodating diverse power sources.
High Power Output: Delivers a stable 12V output with a maximum current of 20A, suitable for powering multiple surveillance cameras and accessories simultaneously.
Built-in EMI Filters: Minimize electromagnetic interference for clean and stable power delivery, ensuring optimal performance of connected devices.
Voltage Regulator Switch: Allows adjustment of the output voltage within a range of 11.4V to 13.2V, offering flexibility and customization.
Comprehensive Protections: Features safeguards against overload, overvoltage, and short circuits, providing reliable protection for both the power supply and connected devices.
Sturdy Metal Housing: Facilitates uniform heat dissipation and enhances durability, making it suitable for long-term use in demanding environments.
Experience superior power supply performance with the CP-DPS-MD200P-12D Metal Case Power Supply. With its wide input voltage range, high power output, and advanced safety features, it ensures stable and uninterrupted power supply for your high-power CCTV systems. Invest in the CP-DPS-MD200P-12D for dependable performance and peace of mind in your surveillance applications.
Technical Specification:
|
Input voltage |
180~264VAC |
|
Output voltage |
12V DC |
|
Current Range |
0~20A |
|
Rated Power |
240W |
|
Ripple & Noise (max.) |
100mVp-p |
|
Voltage Adj. Range |
11.4~13.2V |
|
Line Regulation |
±1.0% |
|
Voltage Tolerance |
±2.0% |
|
Setup Rise time |
600ms, 30ms at full load |
|
Hold Up Time (Typ.) |
13ms at full load |
|
Load Regulation |
±5.0% |
|
Temperature coefficient |
±0.03%/°C (0~50°C) |
|
Frequency Range |
47~63HZ |
|
Efficiency (Typ.) |
84% |
|
AC Current (Typ.) |
5A/115VAC 3A/230VAC |
|
Inrush Current (Typ.) |
20A/115VAC 40A/230VAC |
|
Leakage Current |
<2mA / 240VAC |
|
Over Load |
110~200% rated output power, Protection type: Shut down O/P, re-power |
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH |
|
Working Humidity |
20~90% RH Non-condensing |
|
Vibration |
10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X, Y, Z axes |
|
Dimension |
196(L) x 114(W) x 55mm(H) |
|
Store temperature |
-20~+85°C, 10~95%RH |
|
Working temperature |
-20~+40°C |
|
Withstand Voltage |
I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG:0.5KVAC |
